SurgiChem Dual Injector Pump



Injector Pump and Monitor

  • Adjustable injector arm on rolling stand
  • Secured injection position by sensor detecting arm angle
  • Wireless touch screen
  • Injection pressure display in real time
  • User-friendly interface with large LCD touchscreen
  • Programmable auto-fill volume & flow
  • Used with ThermaSolutions disposable syringes
  • CE approved disposable syringes (FDA pending)

Injection Specifications

  • Flow Rate: 0.1 mL/sec. to 10 mL/sec. in 0.1 mL/sec. increments
  • Syringe Capacity: 200ml/syringe
  • Preset limit: 300 psi default, user-adjustable between 100 to 300 psi
  • Injection Delay: 0 to 3600 seconds in 1 sec. increments
  • Protocol Storage Capability: stores 100 protocols

Device Specifications

Injector Arm and Stand

  • Class IIA Medical Device
  • 19.5 Kg
  • H (159 cm) x D (74 cm) x W (53 cm)

Monitor

  • 4.1 kg
  • H (25cm) x D (11.5cm) x W (32cm)

Electrical Requirements

AC 220V/50Hz/200VA or AC 110V/50Hz/200VA

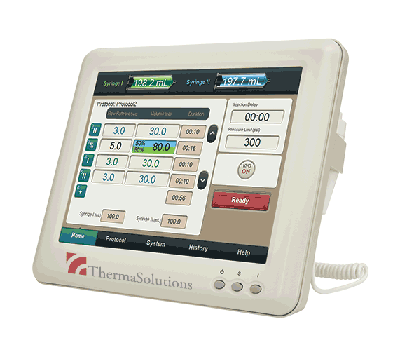

Monitor

Remote Console C22

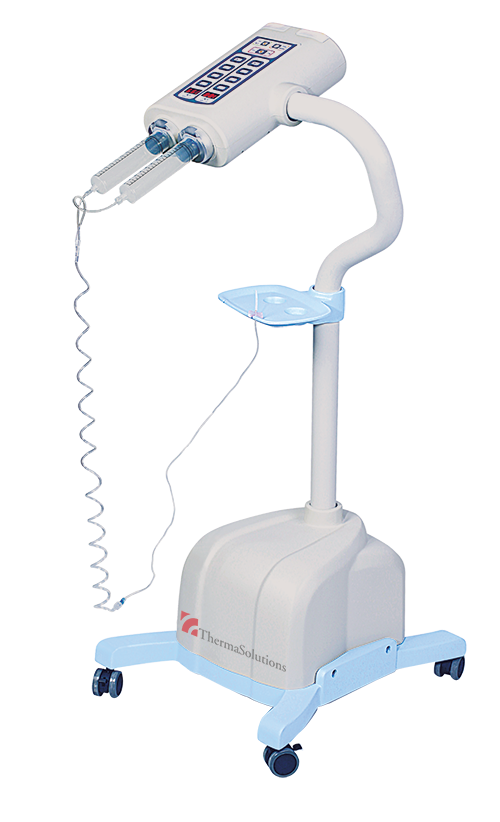

Injector Pump and Rolling Stand

C22 injector 10

Disposable High-Pressure Syringe Kits

For use with SurgiChemTM Dual Injector Pump and HurriChemTM system

Single HP Syringe Kit

Single HP Syringe

Each kit contains:

  • 200ml Syringe (1)
  • 150cm Injection Line (1)
  • Spikes (1)

Dual HP Syringe

Each kit contains:

  • 200ml syringes (2)
  • 150cm Y Injection Line (1)
  • Spikes (2)
Dual HP Syringe Kit

Ordering Information

  • SurgiChem Dual Injector Pump: C-22
  • Dual HP Syringe kit: C01-010-10
  • Single HP Syringe kit: C01-008-10
  • Dual channel transfer set: 04-021-10
  • Single channel transfer set: 04-025-10

Packaging/Sterilization

  • Blister packaging
  • Quantity per case
     – 25 kits (single syringe)
     – 15 kits (double syringe)
  • Sterilization – ETO
  • Gross Weight per case: 8kg
  • Case size: 49x36x38cm
